Series · Low-Voltage Inverters

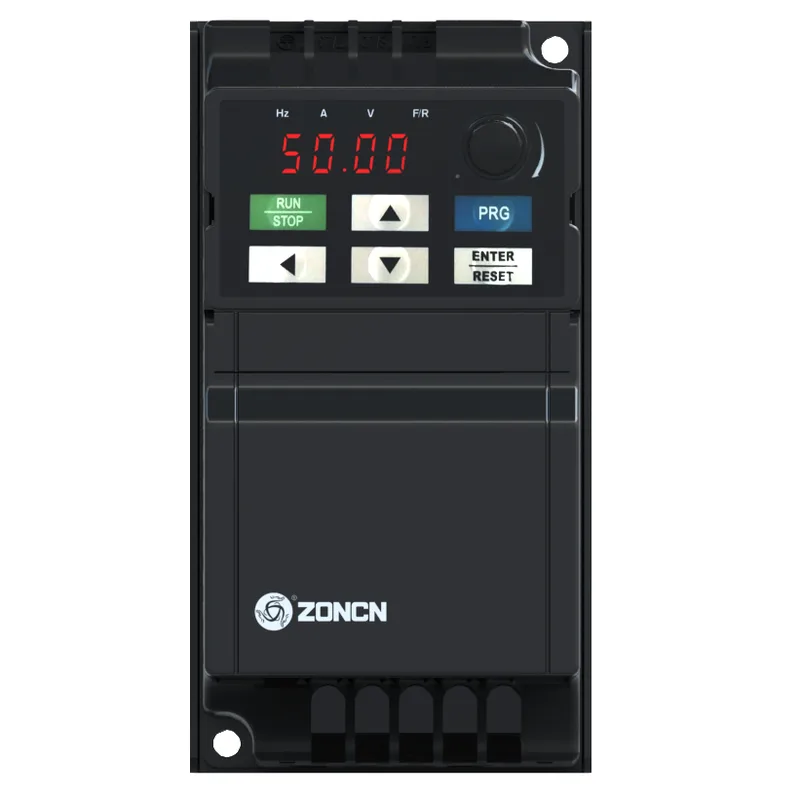

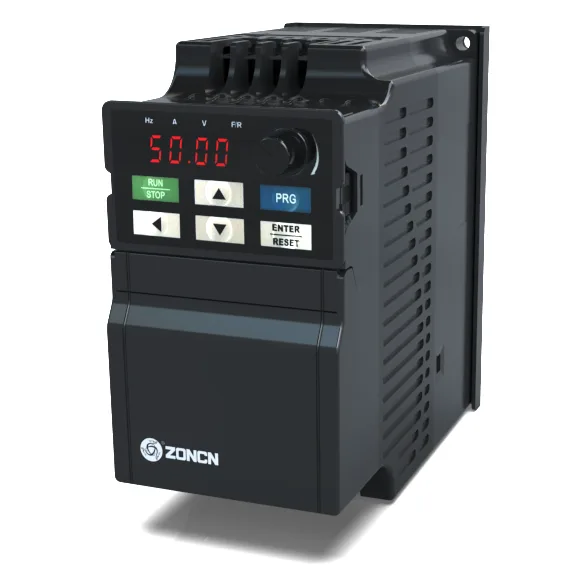

Z2000 Series Compact Vector Control
Open-loop vector control for both asynchronous and synchronous motors, with an independent duct design for harsh environments.

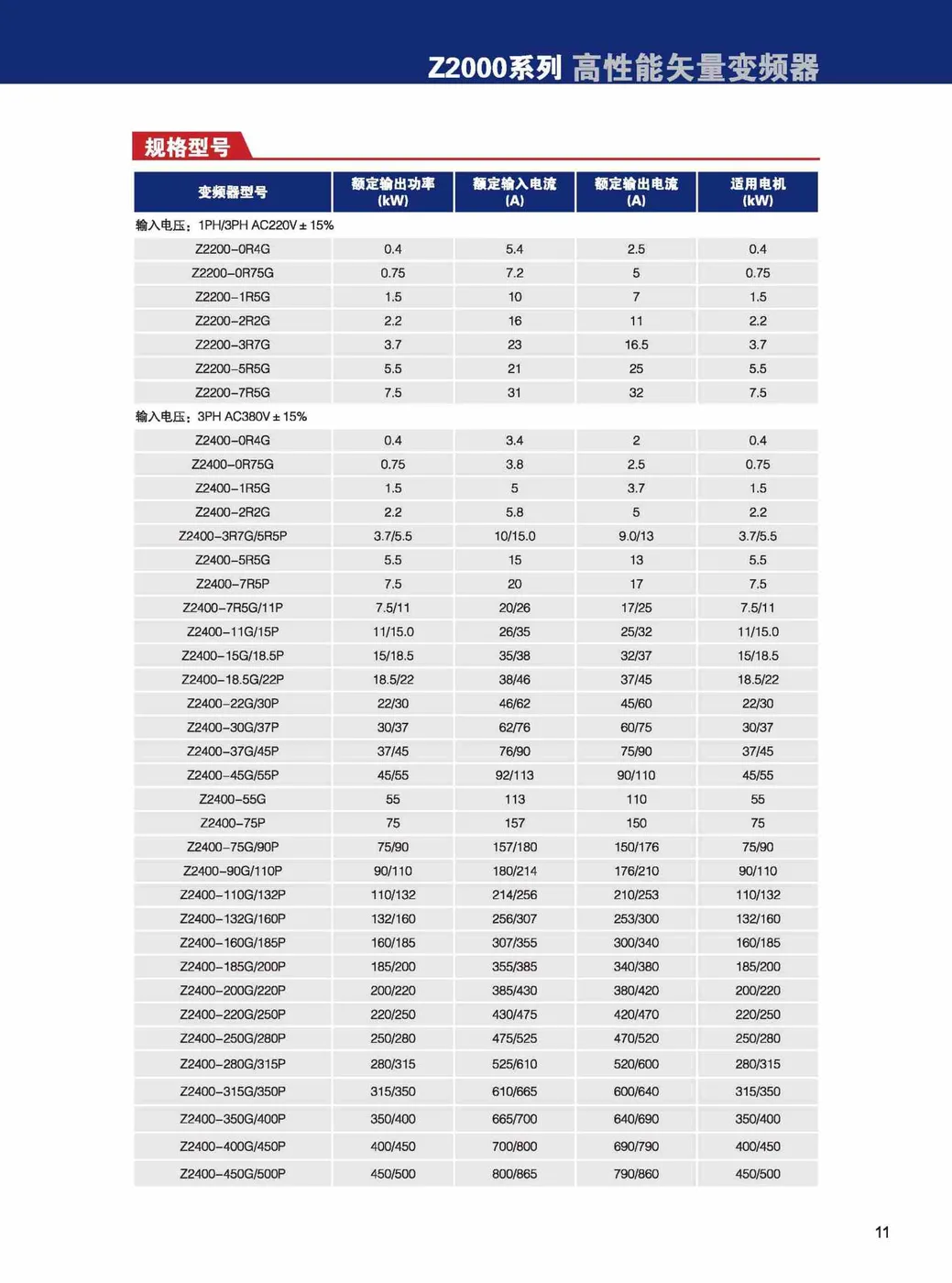

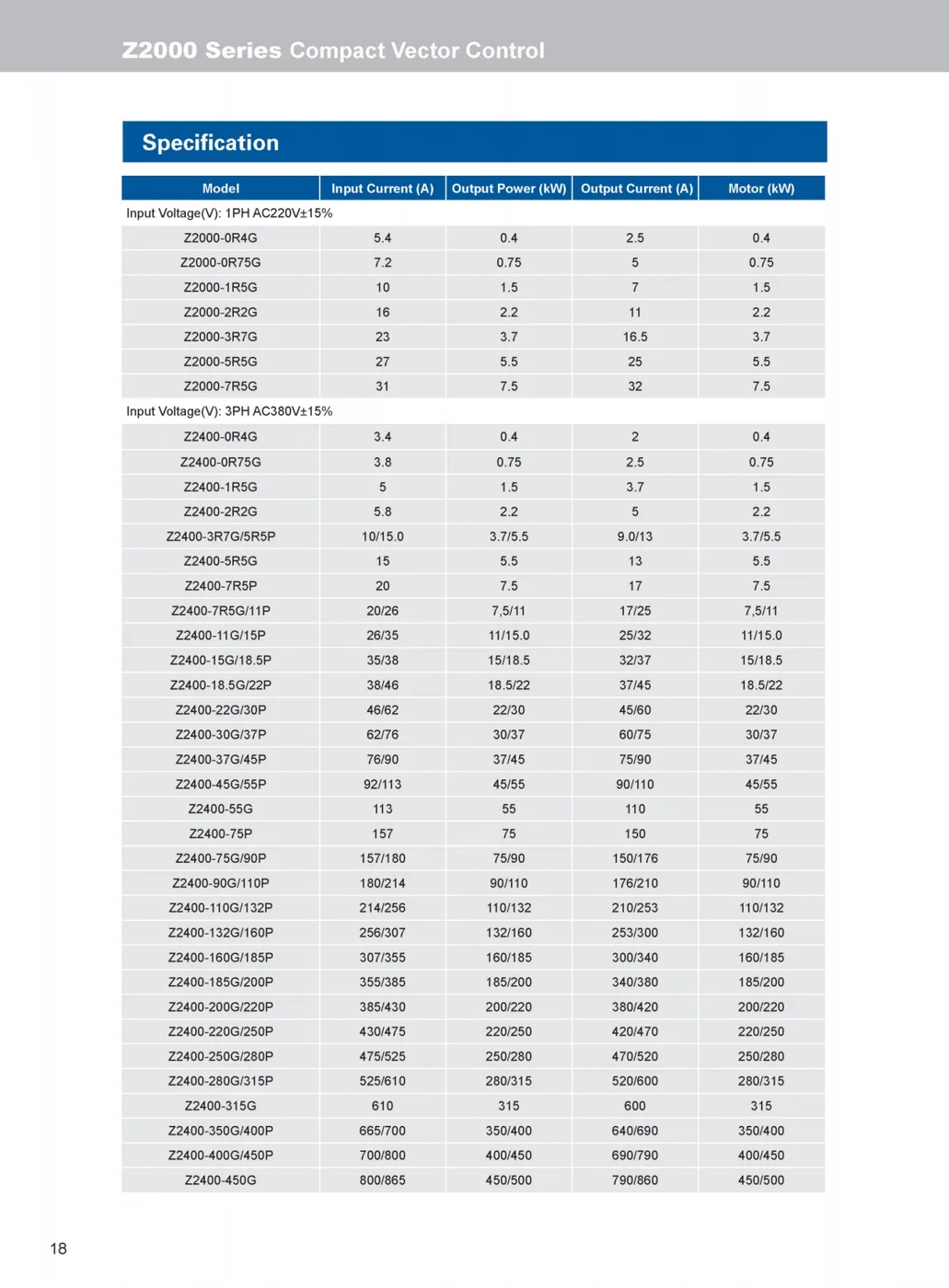

Power Range 220 V 0.4–7.5 kW 380 V 0.75–450 kW

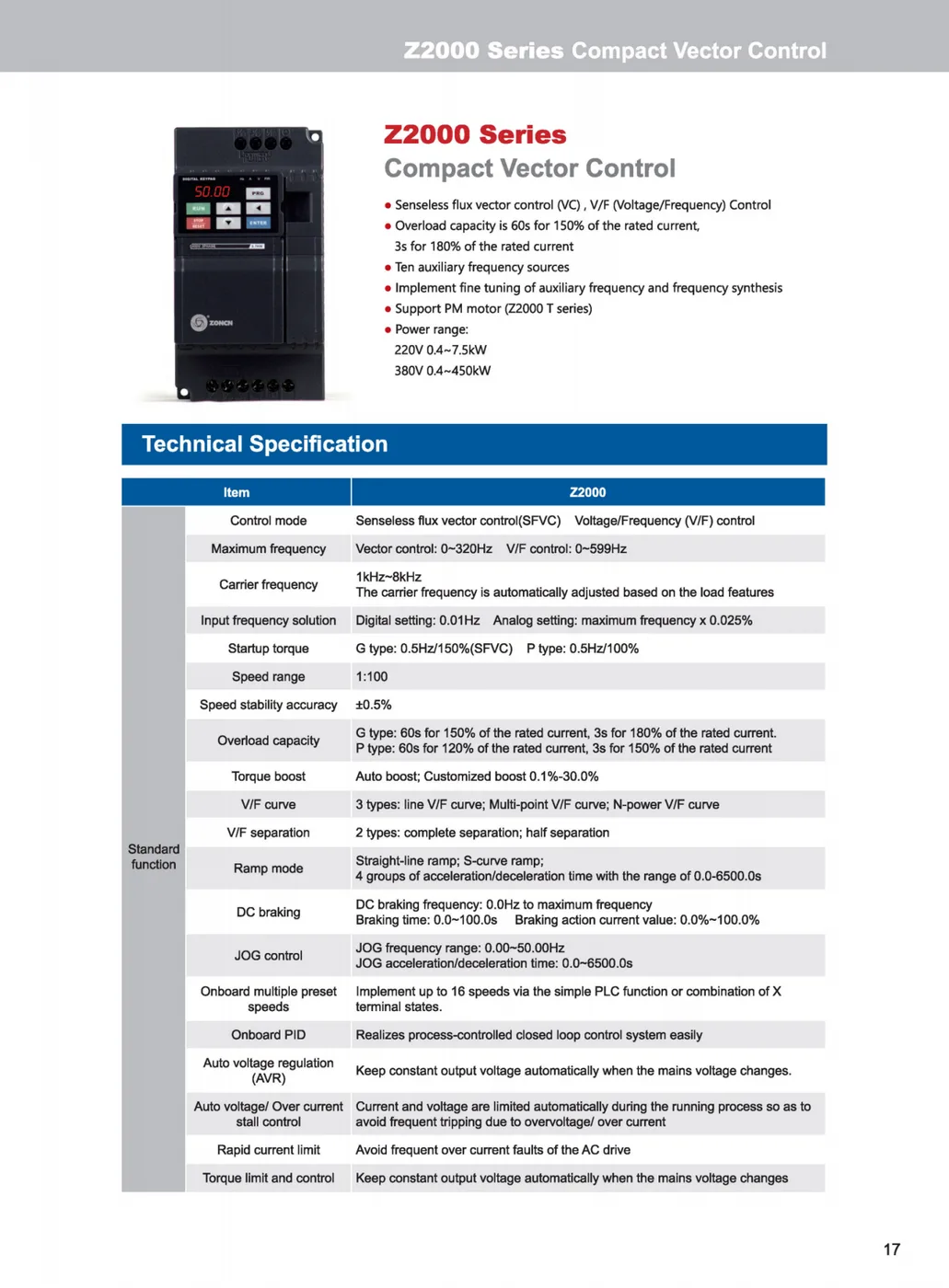

Key Features
- Senseless flux vector control(VC)V/F(Voltage/Frequency)Control
- Overload capacity is 60s for 150%of the rated current,3s for 180%of the rated current.
- Ten auxiliary frequency sources
- It can implement fine tuning of auxiliary frequencyand frequency synthesis
- Support PM motor (Z2000 T series)
